Core Engineering Services

From concept to prototype – we support complex FPGA-based hardware projects with in-house engineering expertise.

PCB Design Service

Professional PCB development based on your requirements – including schematics, multilayer routing and production-ready manufacturing data to reduce integration risk.

FPGA Design Service

Expert FPGA design for demanding applications – from architecture definition to implementation and verification, helping you shorten development time and technical risk.

Rapid Prototyping

Fast hardware prototyping directly in-house – enabling short iteration cycles without unnecessary external delays.

These services are typically combined in custom FPGA and FMC development projects, from early feasibility to a production-ready prototype.

IAM ELECTRONIC

We are experts in FPGA-based electronics.

IAM Electronic GmbH is specialized in the development of complete embedded systems for your applications. Starting with the PCB design, we also create the firmware and manufacture your prototype! Some typical applications are:

  • High channel count Analog-to-Digital-Converter (ADC) modules
  • High-speed digital data interfaces
  • Data acquisition with complex sensor interfaces
  • FPGA mezzanine cards according to ANSI/VITA 57 FMC standard

Ask us about developing your instrumentation and measurement electronics. We use the right tools for the right job.

Planning a custom FPGA or FMC design for measurement or instrumentation?

Get early technical feedback from experienced FPGA engineers.

Discuss your project requirements
Altium Designer

Altium Designer

Altium Designer is the most widely used PCB and electronics design software. Our printed circuit boards are designed using Altium Designer.

AMD Xilinx Vivado

AMD Xilinx Vivado

The AMD Xilinx Design Tools are a powerful toolchain for simulation, synthesis and implementation of FPGA designs. Most of our FPGA designs are created with the Xilinx tools.

VHDL

VHDL

VHDL is a hardware description language (HDL) that can model the behavior and structure of digital systems at multiple levels of abstraction. We prefer to use this language for all our designs.

Mathworks Matlab

Mathworks Matlab

MATLAB allows matrix manipulations, plotting of functions and data, and implementation of algorithms. We use this tool for scientific data analysis and algorithm development.

LTSpice

LTSpice

LTspice is an analog electronic circuit simulator computer software. LTspice is freeware and is used by us for verification of analog circuit designs.

Linux, image (c) lewing@isc.tamu.edu Larry Ewing

Linux

Linux is a family of open source operating systems and runs on PCs and microcontrollers (and FPGAs :-D ). Its versatility makes it suitable for embedded systems.

  • All
  • FPGA Boards
  • FMC Modules
  • Gadgets
Artix-7 FPGA Board

Artix-7 FPGA Board

Tiny 5 x 5 cm² FPGA module with Xilinx Artix-7

Spartan-7 FPGA Board

Spartan-7 FPGA Board

Small form factor FPGA module with Xilinx Spartan-7

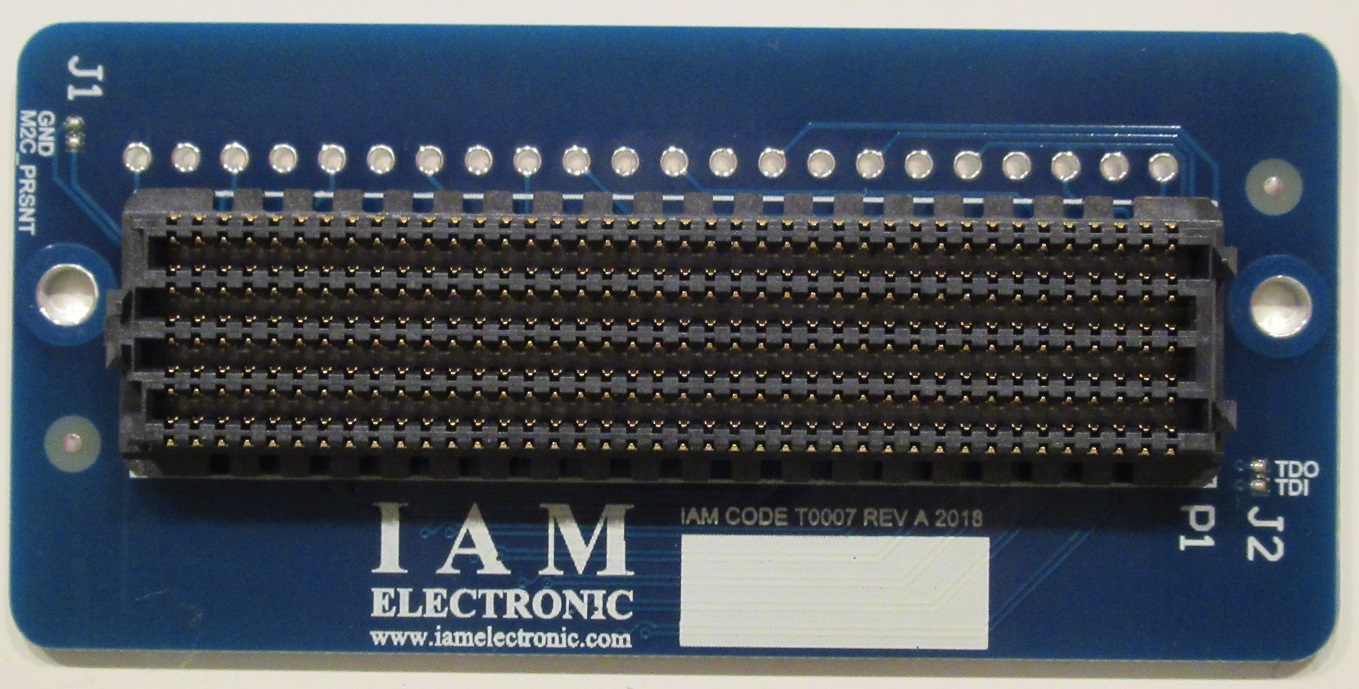

FMC Loopback Module

FMC Loopback Module

FMC HPC Loopback module

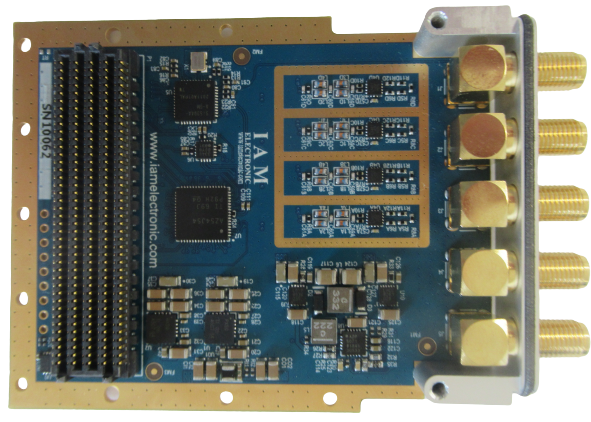

FMC ADC Module

FMC ADC module

ADC 4x 500 MSPS 14 bit (DC coupled)

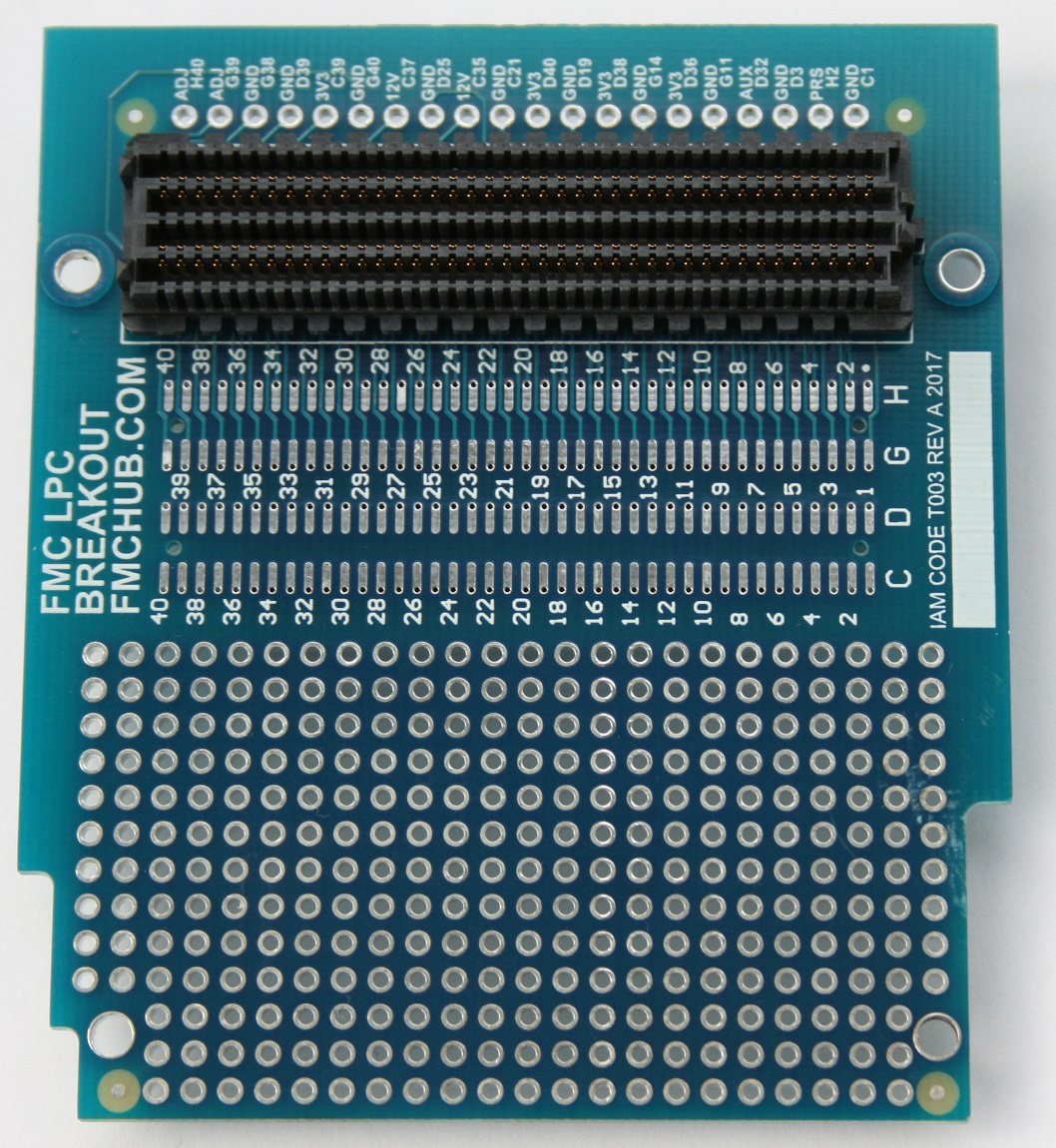

FMC Breakout Module

FMC Breakout module

Low-pin count FMC breakout module

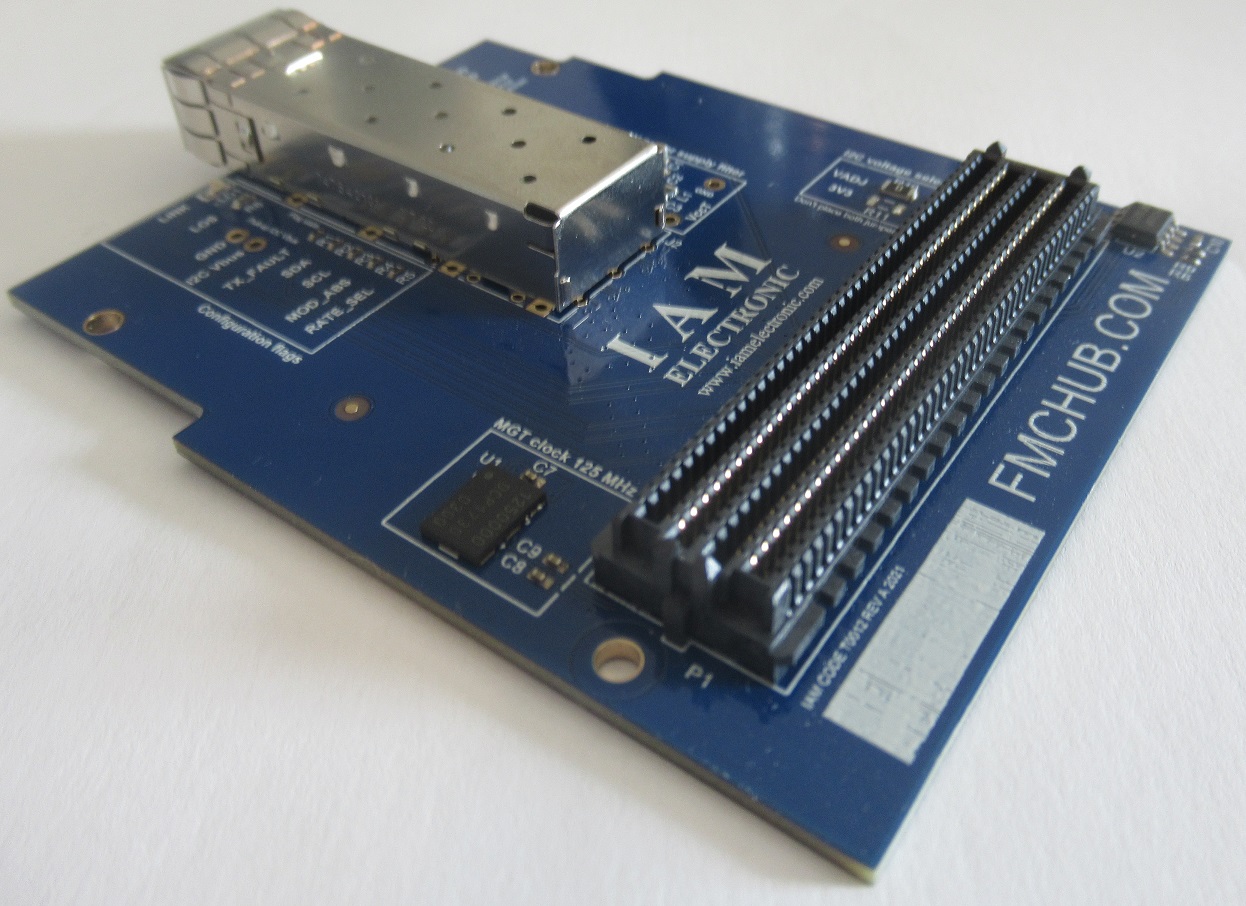

FMC SFP Adapter

FMC SFP module

FMC SFP Adapter Board

FMC HPC-U.FL Debug Board

FMC HPC-U.FL Debug Board

High-pin count FMC Debug Board with 156 U.FL Breakouts and SMA Probing

FMC Loopback Module

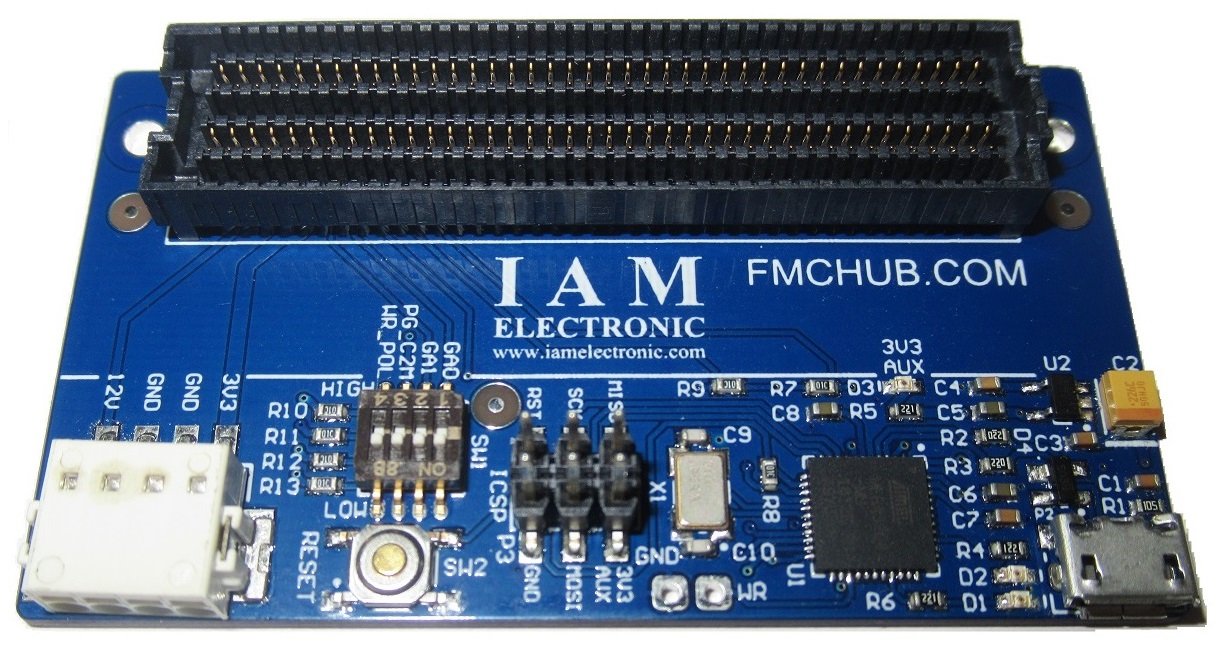

FMC FRU EEPROM Programmer

FRU EEPROM Programmer with USB interface

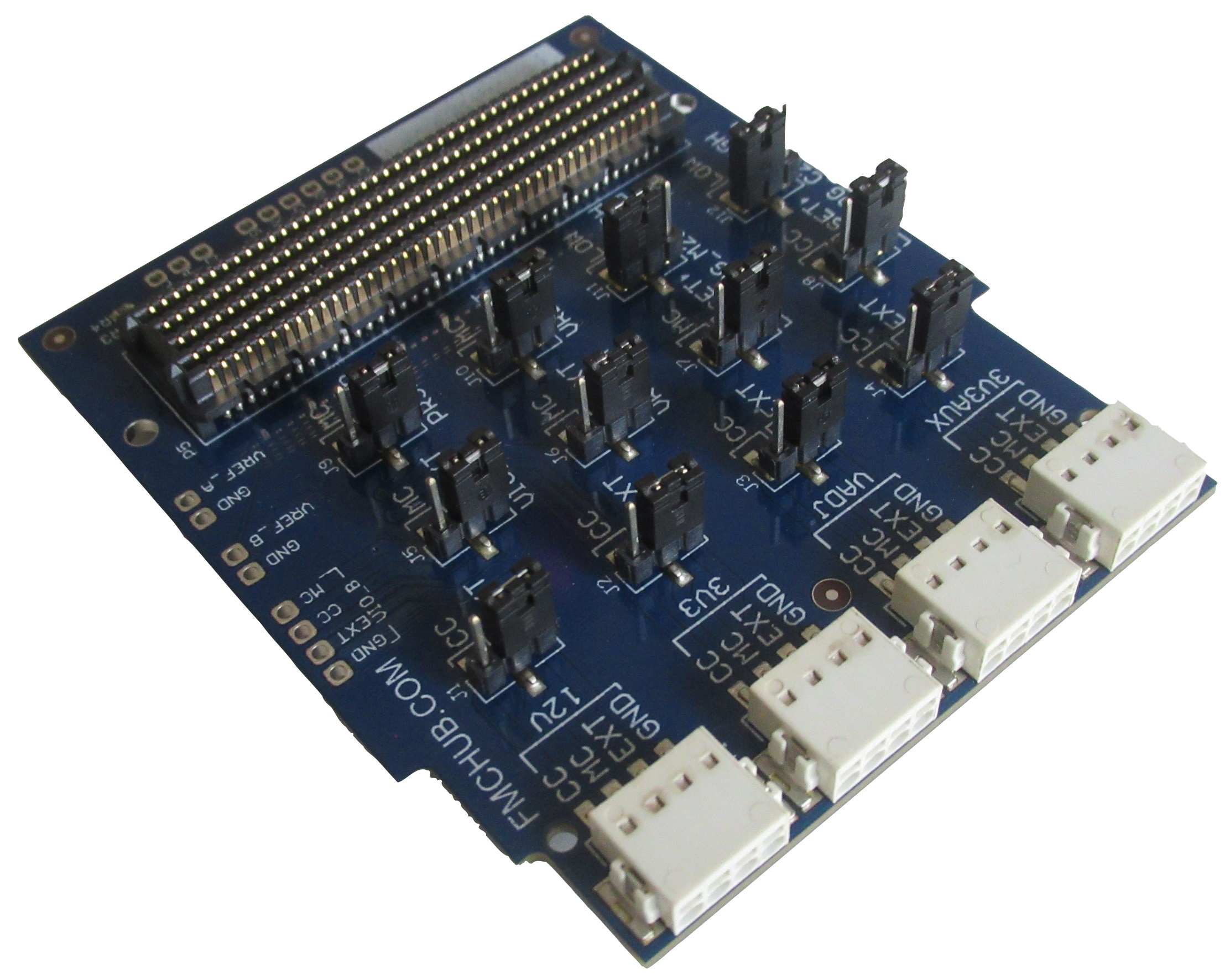

FMC Power Module

FMC Power Module

FMC Power Module

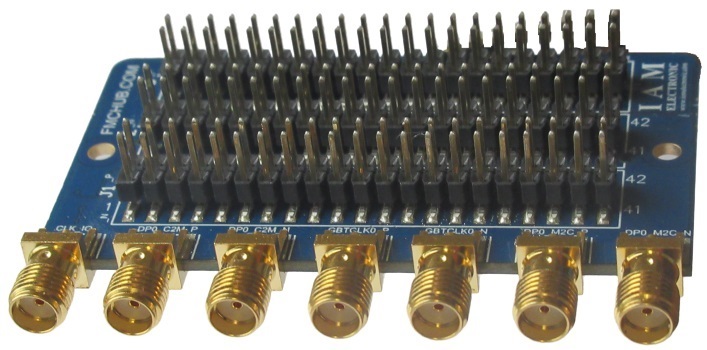

FMC LPC Pinheader Module

FMC LPC Pinheader Module

FMC LPC Pinheader Module

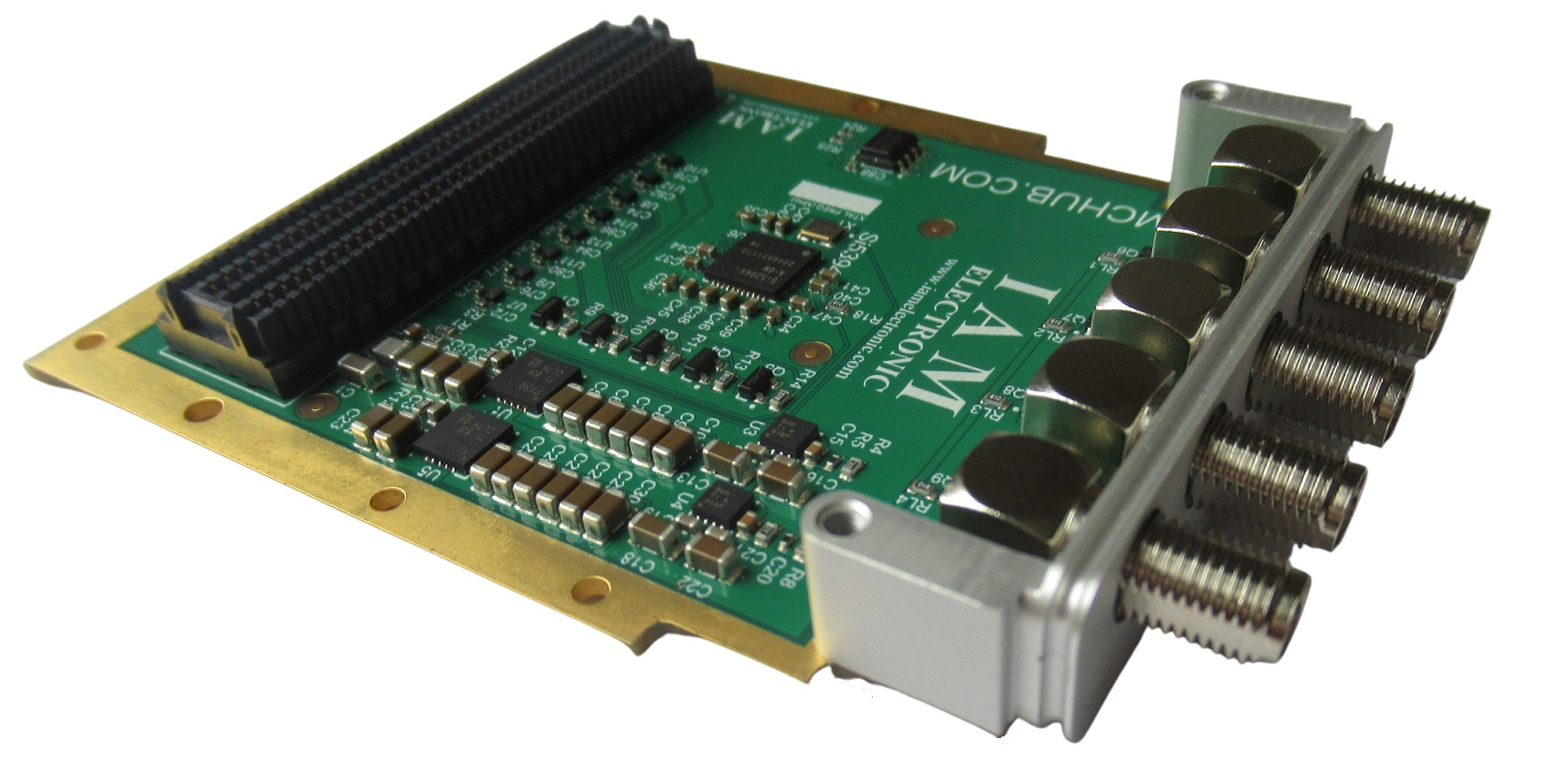

FMC Clock Generator

FMC Clock Generator

FMC Clock Generator

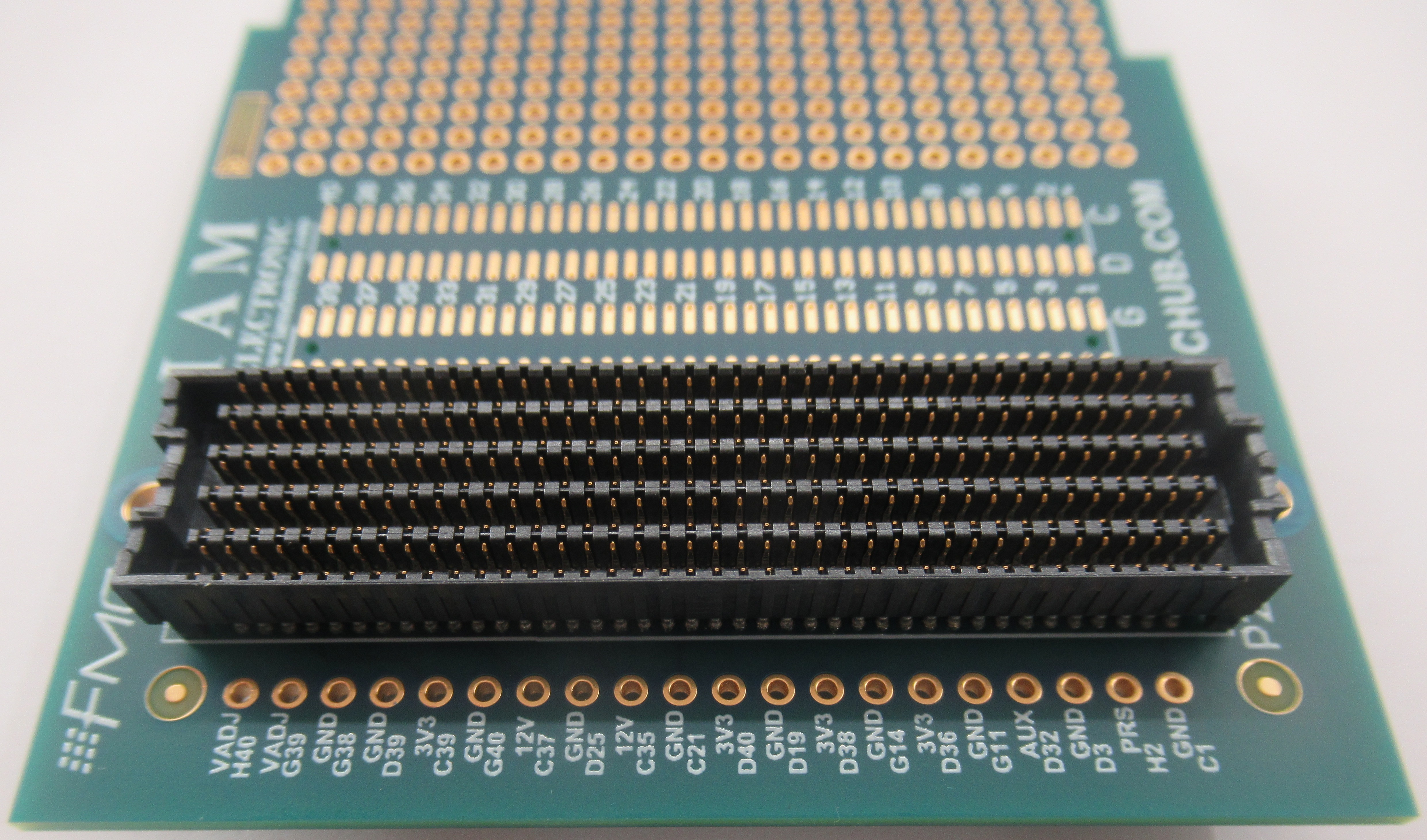

FMC HPC to LPC Breakout Module

FMC HPC to LPC Breakout module

High-pin count FMC breakout module

Clients

Our products and services have been sold to over 320 customers in more than 44 countries. Here is a small selection:

Have a specific application in mind?

We support custom FPGA and FMC projects from concept to prototype and production.

Contact engineering
